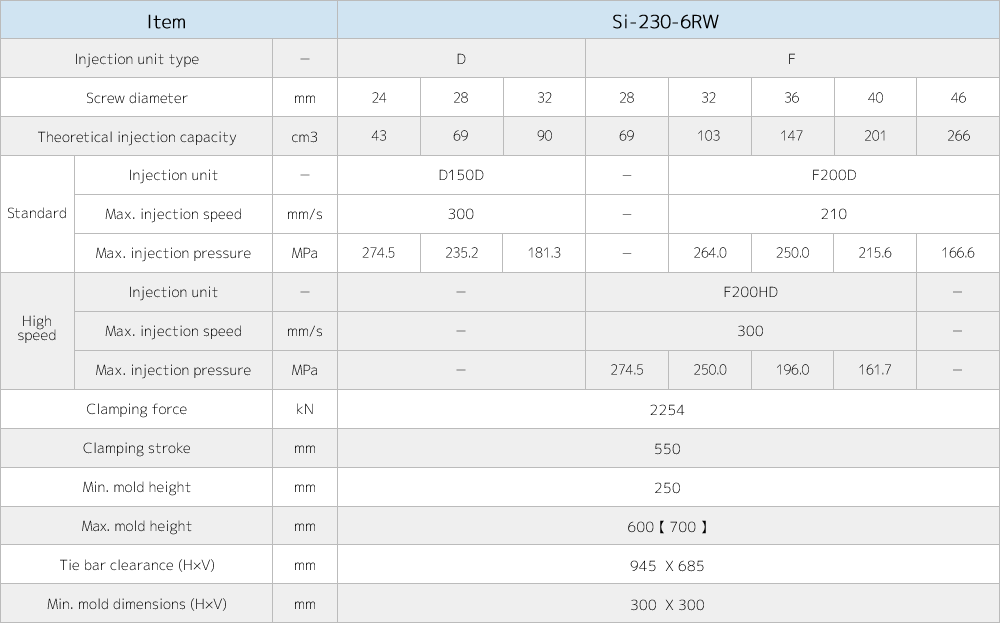

Specifications
Realization of high-speed, high-quality two-color
- The figures are subject to change without any legal obligation on the part of the manufacture.
- The specifications are expressed in SI units : 1MPa=10.2kgf/cm2、1kN=0.102tonf
- The maximum injecting pressure is a maximum settable value.
- The maximum injecting speed is calculated values. This value may be limited by set injecting pressures.
- Maximum injection pressure may be limited by the molding conditions and the cycle time.
- Figures in 【 】 are optional.
- ※1. An optional transformer with a different voltage specification is required for the injection molding machine.
- ※2. Depending on the weight of the mold, the reversal time may be delayed.
- ※3. The temperature control method for the moving side is a rotary joint system.
Please prepare a temperature controller one size larger than the mold size. - ※4. The maximum adjustable temperature on the moving side is 100°C.
It is possible to accommodate up to 120°C as an option.
