With an electric servo system adopted, smart die-casting is achieved.
Precise and flexible injection is possible, from ultra-low to ultra-high speeds.
Features
Features
- Complete electrification of all operations, including injection, die opening/closing, and ejection.
- Improved repeatability and stopping accuracy
- No hydraulic oil or cooling water required for machine operation.
- Lower machine height due to the absence of hydraulic accumulators
- High-cycle operation with parallel movements is possible.
Injection Performance
- Low speed: 0.01 to 1.0 m/s (Max. 9-point setting)
- High speed: 0.5 to 3.0 m/s (Max. 5-point setting)
- High-speed acceleration performance: 10 G (1 m/s/0.001 s)
- Pressure intensification performance: 20 m/s
- Multi-step intensification setting: Casting pressure over time (Max. 4-step setting)
※ With full electrification, the injection characteristics differ from those of conventional hydraulic machines.
Please consult us when selecting the appropriate machine.
Energy-saving effect
- Power consumption can be reduced by 80%.
※Comparison with our hydraulic die-casting machine BD-V5 EX (2012 model)
Data measured based on our standard measurement method.
Results may vary depending on various conditions.
Main Specifications

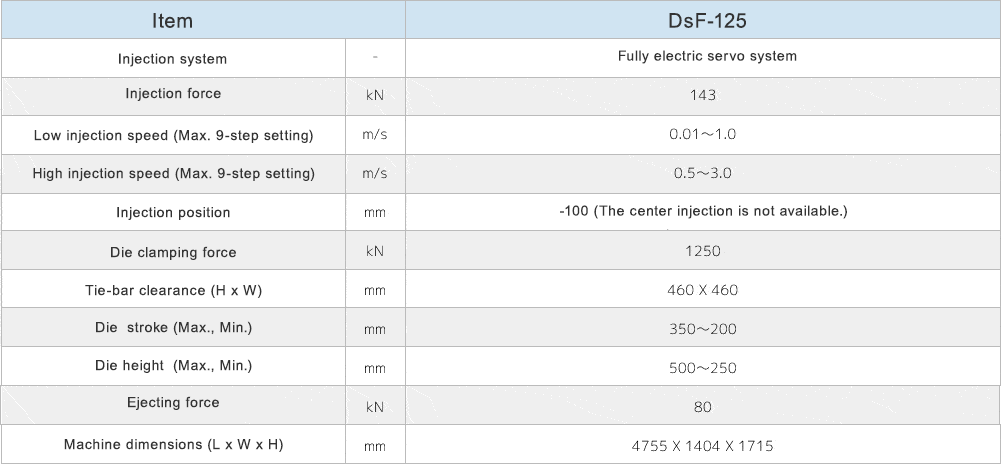

DsF-125 Main Specifications
