Electric Servo Injection Molding Machine, The CS Series made in Changshu, China

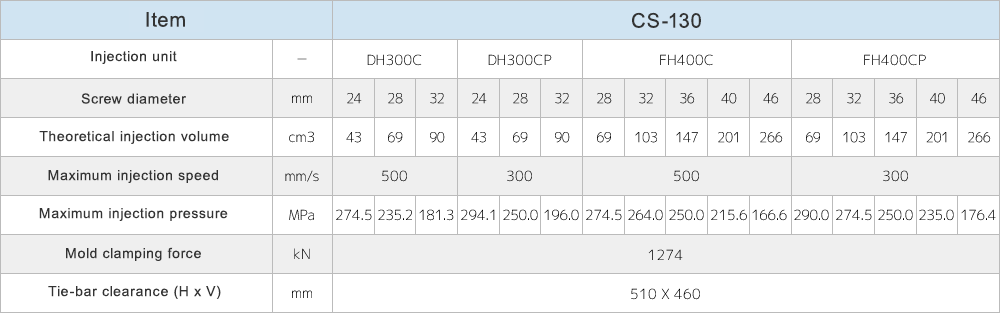

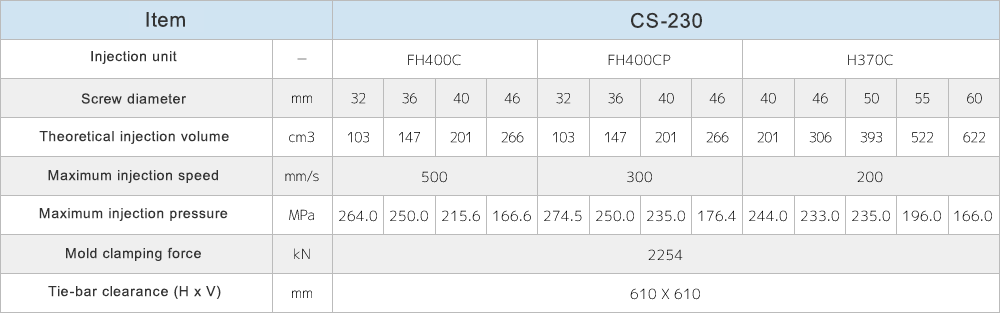

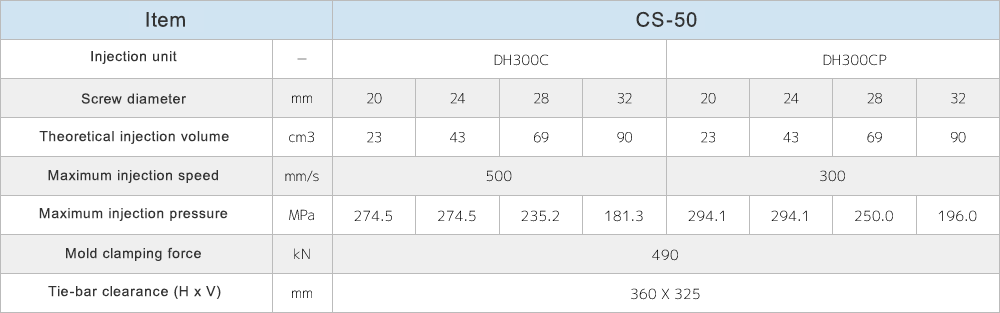

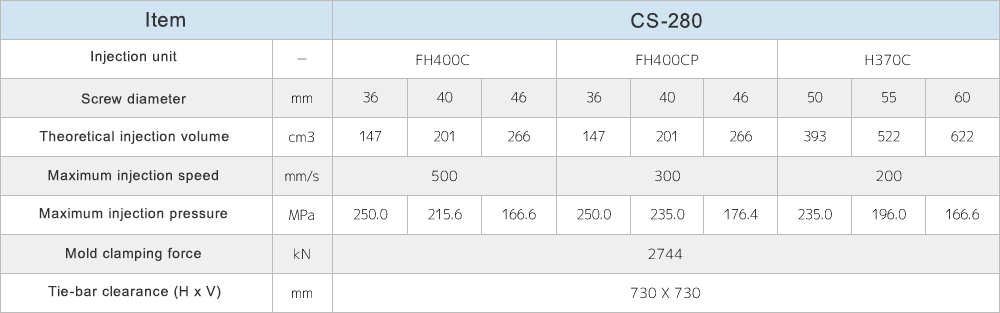

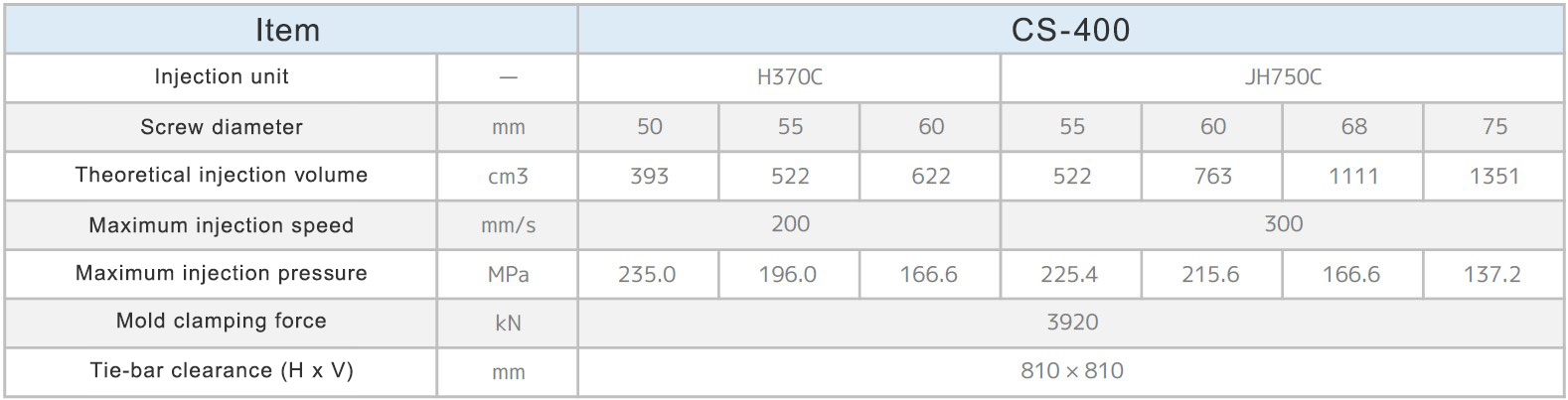

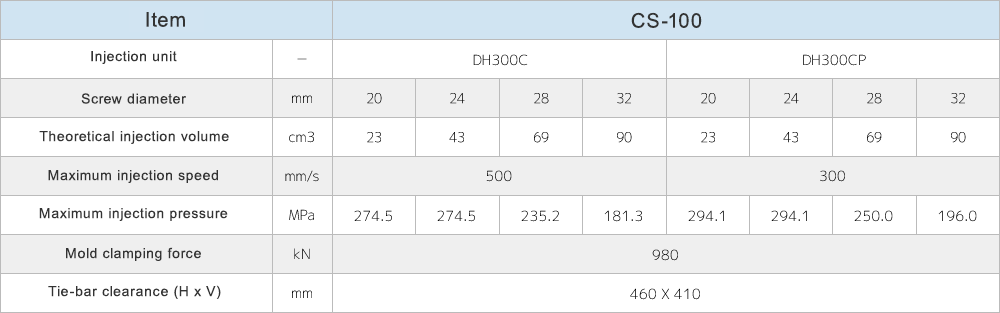

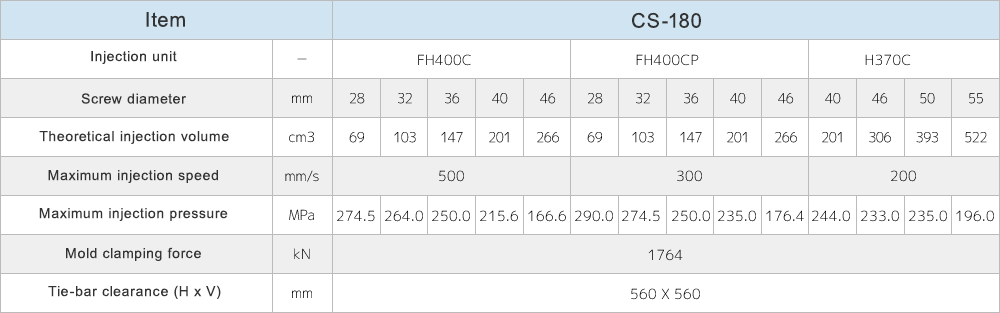

Product Features Main Specifications Related technology/Product

Aiming for further molding stability, the CS Series electric injection molding machines are produced at the Changshu factory, China.

Equipped with the user-friendly control, SYSTEM700, these electric models are manufactured under strict quality control and process management.

Product Features

The control system has been completely upgraded to a new high-speed, high-response domain.

It is now equipped with the latest SYSTEM700.　Key enhancements include a large, easy-to-read, and user-friendly touch screen, mold accident prevention, molding condition diagnostics, and molding navigation—focusing particularly on support functions.

5-inch touch panel
HSP mold protection control
Trouble diagnosis support function
Molding condition diagnosis function
Molding navigation function
Other special control functions

One size-larger screw and heating cylinder come standard.
The results of industry-academia joint research have been incorporated into the CS series, too.

The screw and heating cylinder adopt a wear-resistant material.
Compared to conventional specifications, this reduces the wear and contributes to the stable quality of molded products.

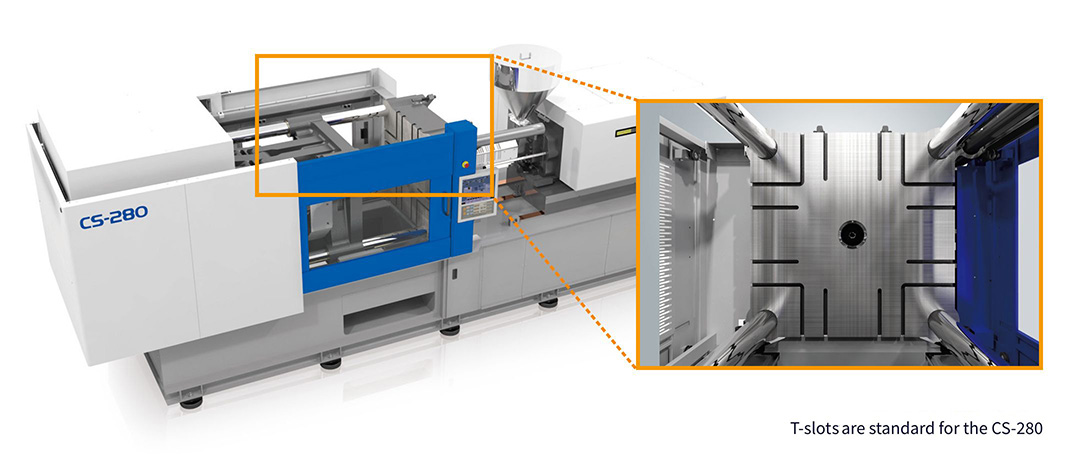

While inheriting proven technologies such as the ""V-Clamp"" clamping mechanism, developed through industry-academia collaboration, we have improved fundamental specifications such as tie-bar spacing and ejector stroke.

Our new production base in Asia: Toyo Machinery (Changshu) Co., Ltd. in China.

Toyo Machinery (Changshu) Co., Ltd. was established in 2007 as a local subsidiary of Toyo Machinery & Metal Co., Ltd., with the aim of manufacturing molding machines for China and other Asian markets.
Under stringent quality and process control, we have achieved Japanese-equivalent quality manufacturing.
As TOYO’s new production base and a key component supply base, we also support our domestic customers' overseas production as well.
