Achieving high-speed, high-quality two-color, two-material molding!
The two-color molding machine is now available in the proven PLASTAR Si-6 series!
Product Features
The latest SYSTEM700 has been installed in the control system. It features a large, easy-to-read and touch-friendly screen, along with enhanced support functions such as mold accident prevention, molding condition diagnosis, and molding navigation.
- 15-inch touch panel
- HSP mold protection control
- Trouble diagnosis-supporting control
- Molding condition diagnosis function
- Molding navigation function
- Other special control functions

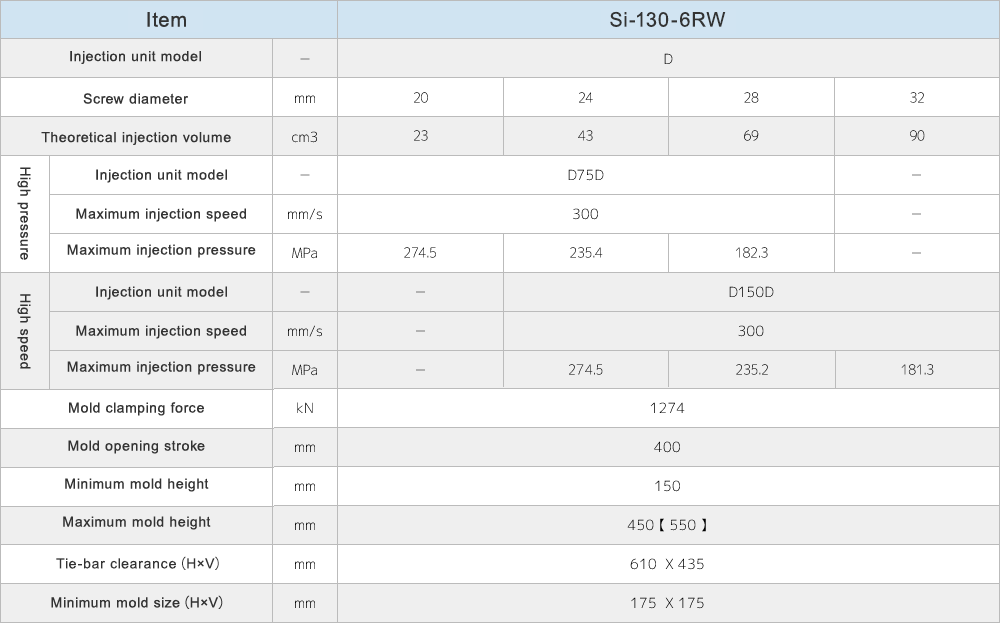

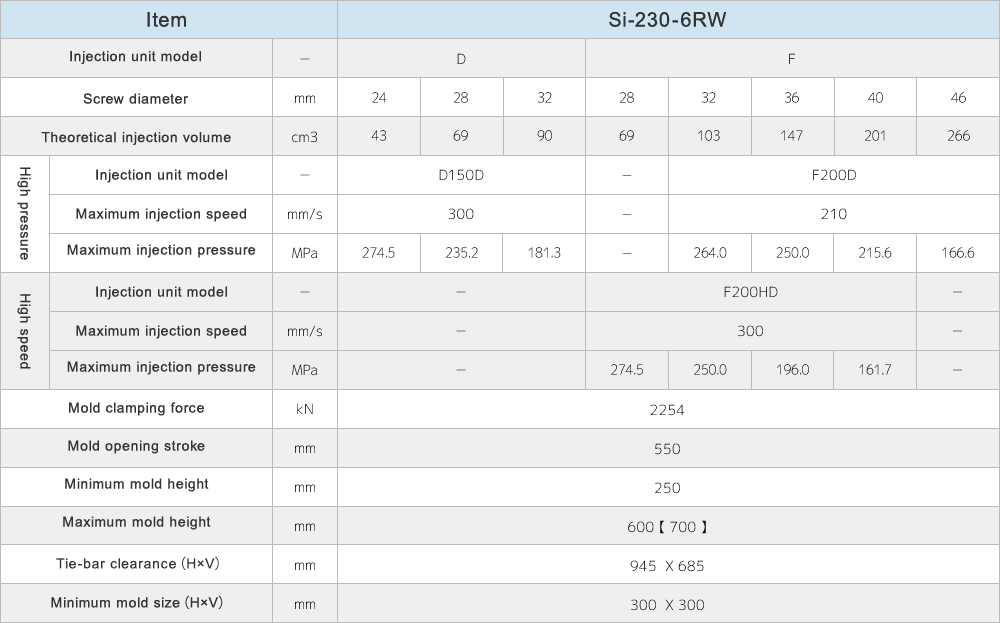

Main Specifications
Related technology/Product
Introducing our proprietary technology. It can also be installed as an option.
S-HIN screw
Special screws MXT | SAG | V&D
SRC-Ⅲ（Super Resin Control）
C-TiN coating
"Vacuum Degassing System inside the Heating Barrel, implemented in the SAG screw and SAGα, won the "Aoki Katashi Technology Award."
Nitrogen gas supply control system N2Seal
MuCell® | N-MCP
Fluoropolymer-compatible specification
"Thermosetting resin specification
Injection molding｜Liquid silicone molding｜BMC molding｜Transfer molding" Fully electric vertical transfer molding machine TF-80v Resin viscosity automatic adjustment program meltcon® Servo unscrewing system Molding with biomass materials
Injection molding｜Liquid silicone molding｜BMC molding｜Transfer molding" Fully electric vertical transfer molding machine TF-80v Resin viscosity automatic adjustment program meltcon® Servo unscrewing system Molding with biomass materials
